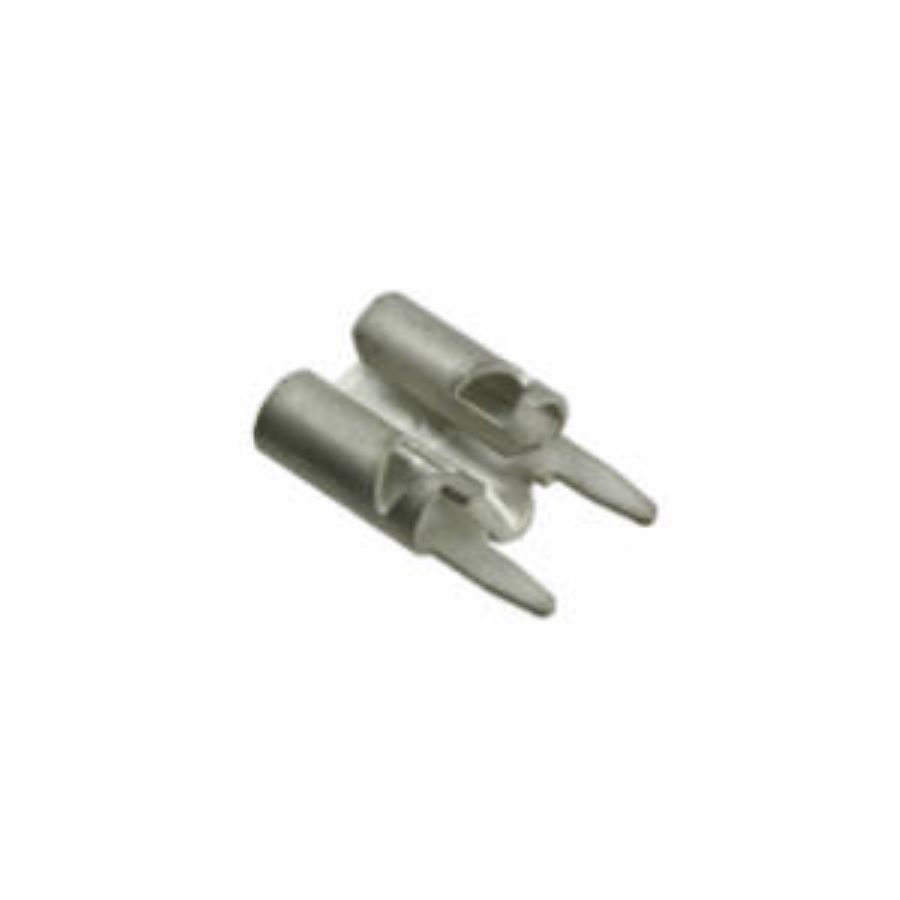

1217080-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1217080-1
Datasheet:
Description:
Terminals Through Hole 1 AWG Female
| Parameter | Value |
|---|---|
| Length | 12.19 mm |
| Termination | Receptacle, Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 8.88 mm |
| Material | Brass |
| Packaging | Bulk |
| Depth | 7.42 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | PC Tab |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Gender | Female |
| Number of Contacts | 1 |
| ELV | Compliant |
| Body Material | Brass |
| Tab Width | 6.35 mm |
| Terminal Material | Brass |
| Hole Diameter | 1.397 mm |
| Connector Type | Receptacle |
| Wire/Cable Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Number of Rows | 1 |
| Plating | Tin |
| Termination Style | Solder |
| Body Plating | Copper |
| PCB Thickness | 1.5748 mm |
| Plating Thickness | 2.54 µm |
| Underplate Material | Copper |
| Insulated Wire Support | No |
| Mating Tab Width | 5.207 mm |
| Tab Length | 8.382 mm |
| Tab Thickness | 812.8 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Stud Size | 6.35 mm x 0.81 mm |
Stock: 20388
Distributors
pcbx
pcbxUnit Price$0.18124
Ext.Price$0.18124
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.18124 | $0.18124 |
| 10 | $0.14448 | $1.44480 |
| 50 | $0.12769 | $6.38450 |
| 100 | $0.11285 | $11.28500 |
| 500 | $0.10349 | $51.74500 |
| 1000 | $0.09490 | $94.90000 |
| 3000 | $0.09147 | $274.41000 |
| 5000 | $0.09062 | $453.10000 |
| 10000 | $0.08977 | $897.70000 |
